White 4x8 PVC Partition Board UV Coated Anti - Aging With Any Length SGS

White 4x8 PVC Partition Board UV Coated Anti - Aging With Any Length SGS

  • White 4x8 PVC Partition Board UV Coated Anti - Aging With Any Length SGS
White 4x8 PVC Partition Board UV Coated Anti - Aging With Any Length SGS
Product Details:
Place of Origin: zhejiang,china(mainland)
Brand Name: manguan
Certification: ISO,SGS
Model Number: partition board 009
Payment & Shipping Terms:
Minimum Order Quantity: 100 sheets
Price: negotiable
Packaging Details: 1)one side clear pe film protect the pvc sheet 2) about 3pcs or 5pcs ,10pcs use one pe film bag
Delivery Time: 12 workdays
Payment Terms: L/C,TT,Paypal,Western Union
Supply Ability: 300000 sheets per month
Contact Now
Detailed Product Description
Type: Decorative High-Pressure Laminates Material: PVC
Size: 1220*2440mm Facing Type: Single-Faced, Double-Faced
Color Design: Solid Color, Wood Grain, Marble Feature: Waterproof, Fireproof
Surface: Glossy,matte Usage: Wall Partition; Ceiling, Fireproof And Decrative Substrate Board
High Light:

foam core board


wall partition board

16mm thickness high density 4x8ft pvc foam partition board


Technical Data:


Width: 1250mm-2050mm, 2050mm in max


Length: Any length


Standard size:1220*2440mm, 1560*3050mm, 2050*3050mm


NOTE: we can make other size according customer requirment



Payment L/C,T/T,Western Union, MoneyGram, Paypal
Delivery 6-10days after confirm your order


Product Description It made through foaming and pressing into shape with additives, it’s very light and can be carried and processed easily, the main material is PVC, it has the advantages of water-proof and fire-resistant, wide range of application outdoor and indoor, the face/back could be UV coated with different colors
Dimension width: 1220mm, length: 2440mm or as request, thickness: 3-20mm
Technical Data Density: 450-650kgs/m3, can be according to customers requirement.
Surface density: 857.4kgs/m3
Shore Hardness: 51.5Hd
Charpy impact strength:59kJ/m2
Internal bonding: >1.38MPa
Surface screw holding: 2345N
Features & Advantages 1, light weight, facilitates storage and transportation
2, fireproof and flame retardant, self-extinguishing in 3 seconds after leaving the fire
3, sound insulation, heat insulation, noise absorption,
4, moisture resistant and mould resistant, don’t absorb water
5, no deformation, good tenacity, high rigidity, good impact resistant
6, easily to processed
7, good plasticity, being an excellent thermoform material
8, anti-chemical corrosion, easy to clean and maintain
9, suitable to silk screen print
10, anti-aging, life span long as 50 years
11, non-toxic
Application 1,outdoor wall board, advertisement board for printing,

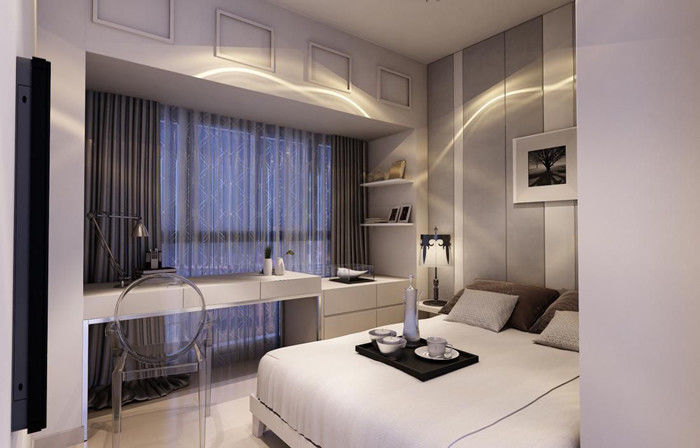

2, partition board, exhibition display and shop window
3, engraving, cutting, sawing for architectural decoration and upholstery
4, commercial residential furniture, cabinet.
5, Chemical anti corrosion project
Processing performance

1, plastic coated, membrance-stuck and printed, painted, UV coated with different colour as like
2, with the usual equipment and tools, it can be processed again.
3, welding and bonding
4, cutting and sawing
5, bending when heated-up, thermal forming
6, hole-drilling, Channeling and die cutting
7, nail, wrest and rivet.


Packaging & Shipping
Packing Export standard pallet, inner wrapped with plastic film, outside covered with thin MDF/carton, edge with protector, tied with steel strip, suitable for containerization.
container loading quantity (for 4'*8') For 1220*2440mm
20’GP: 8pallets, 21.5m3,
40’GP:16pallets, 43m3
40'HQ: 18pallets, 50m3, the gross cargo weight not more than 26000kgs
Shipment Port Shanghai China


pvc celuka foam board, white pvc foam board,black pvc foam board,colored pvc foam board,red pvc foam board,yellow pvc foam board,green pvc foam board,blue pvc foam board and so on.


our pvc foam sheet other name is pvc foam board, pvc foam panel, pvc foam

plate,rigid pvc foam board,pvc free foam sheet ,pvc plastic foam sheet,pvc forex

sheet,pvc crust foam sheet,pvc extruded foam sheet,hard foam pvc sheet,pvc

celuka foam sheet,pvc cabinet foam sheet and so on.
